Automatic Meter Reading (AMR) Solutions

Our experienced metering team have put together a range of packaged solutions that can be retro-fitted to existing electrical distribution boards. These solutions will not only provide additional MID approved meters but will also allow existing meters to be connected for remote meter reading.

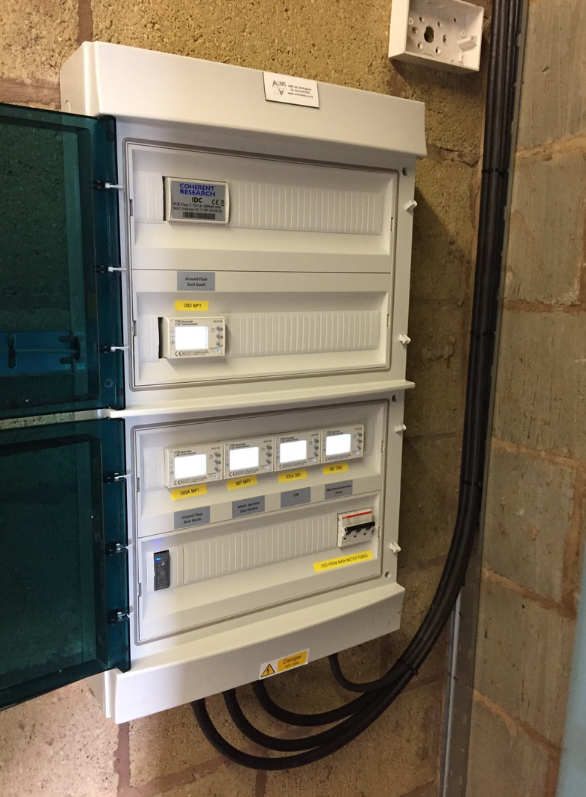

Recently installed panel with Modbus meters linked to an IDC master unit. The IDC connects to a server for half hourly meter readings and access to instantaneous parameters such as Amps, Volts, kW and Power Factor.

Isolation is provided including indivdual meter fuses and CT shorting links. Internal wiring is fitted, including the Modbus meter chain connected to the IDC. In this case the IDC is connected to a live data point via an Ethernet lead.

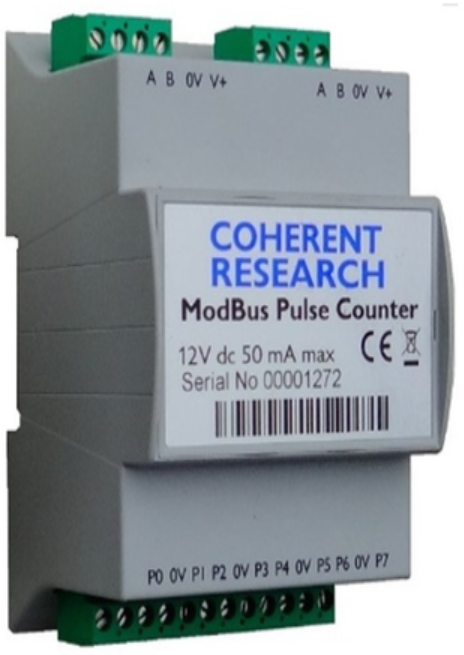

Pulse counter allows water, gas, and other utility meters to be monitored. Multiple pulse counters can be linked together

Cellular modems and routers combined with roaming sims provide reliable meter communication. Cutting edge LoRa technology to integrate remotely located pulsed output devices seamlessly with Modbus comms protocol

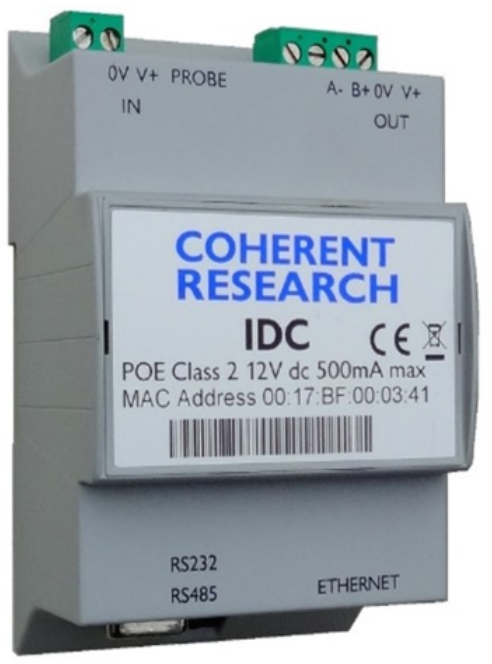

IDC Master unit connects to chains of meters & pulse counters. powered by Ethernet (POE) or 12V PSU

Integrating AMR within one, multi-utility solution

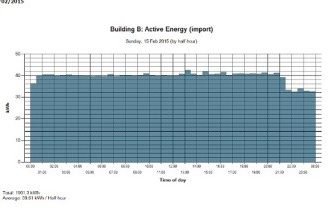

Readings and consumption reports can be tailored to suit the application and sent via email to the customers circulation list.

Software development and support is based in the UK and we have engineers available to visit site to help with the provision and connection of meters to the system

One integrated community of assets, interrogable from anywhere.

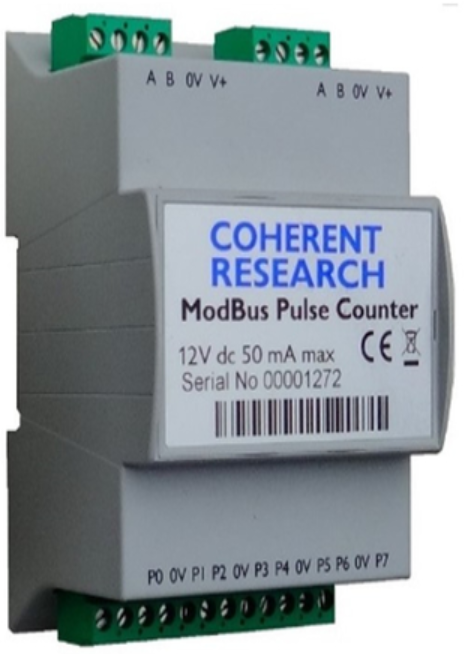

The IDC master and 8 channel pulse counter combination is a flexible and cost effective solution for commercial office blocks, business estates and organisations with large meter populations such as Warehouses, multi-unit commerce and universities
